Description
Package Include:
- 1×Dental Patient Monitor
- 1×Cuff for adult
- 1×SpO2 Probe
- 1×5 lead EKG Cable
- 1×Temperature Probe For ECG monitor
- 1×User Manual

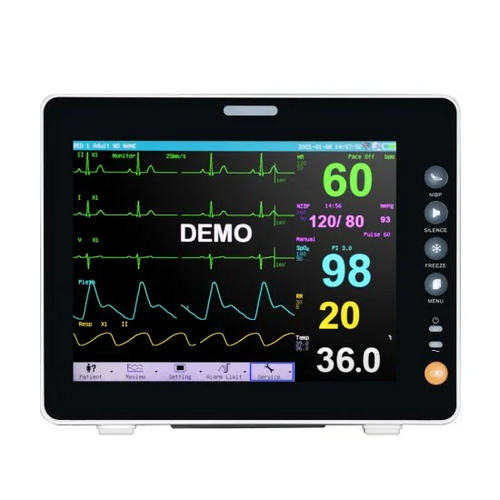

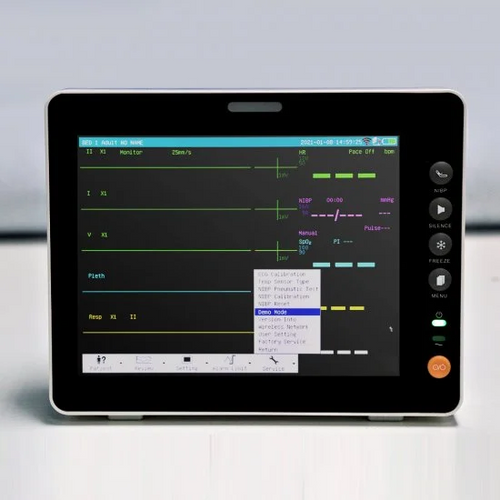

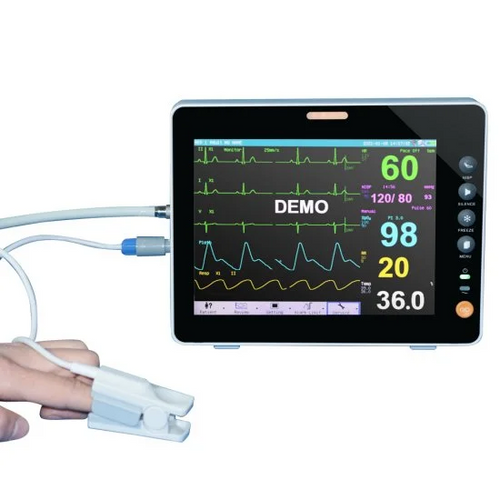

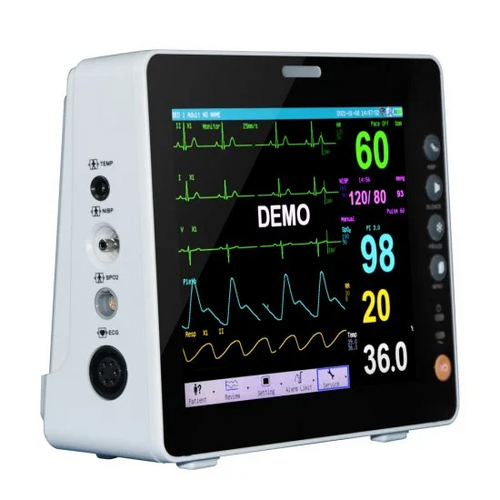

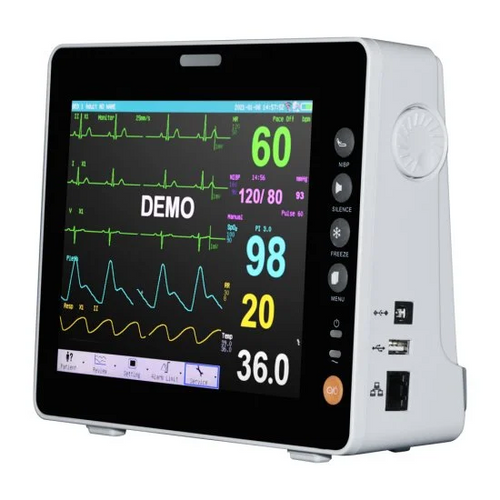

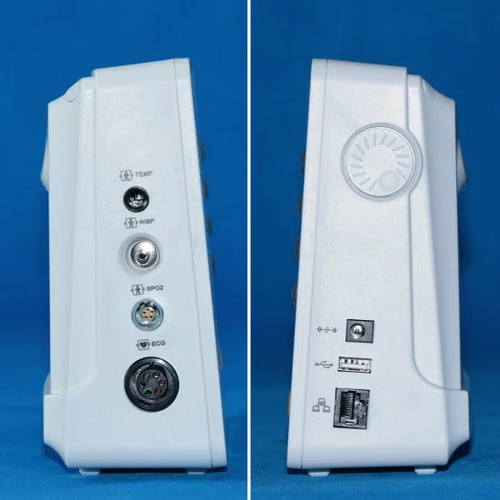

Dental Oral implant monitor can be used in oral implant surgery. It can monitor and measure human body's vital signs in real time for patients, especially patients with cardiovascular and cerebrovascular diseases and diabetes, and monitor the changes of life signs in real time, and provide basis for oral implant.
Features:
- High brightness and high resolution display 8 inch color LCD screen ,more comfortable glare
- 7-Channel ECG Waveform display,5 minutes ECG waveform playback, automatic detection of ST segment
- 384 hours trend data memory for all the parameters and dynamic waveform capture
- Can be arbitrarily set the alarm limit, automatic sound and light alarm
- Anti-movement, anti-defibrillation, anti electrosurgical interference
- Remote central monitoring network interface
- Drug solubility calculation function, Arrhythmia analysis function
- Built-in lithium battery, AC and DC, can provide long-term monitoring after power failure
- Widely used in the Department of internal medicine, Dntal practices (both pediatric and adult), oral surgery centers surgery, operation room,obstetrics and Gynecology, pediatrics, emergency center, ICU, CCU.
- Standard configuration:
- ECG, NIBP, SPO2, TEMP, RESP,
Technical parameters:
ECG Measurement：
Leads choices: All, I, II, III, aVF, aVR, aVL. V1--6 chest leads showed
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Frequency:
diagnosis 0.05 ~ 130Hz
Monitoring 0.5 ~ 40Hz
Operation 1~ 20Hz
Common-mode signal inhibition:
diagnosis > 90 dB
Monitoring > 100 dB
Operation > 100 dB
Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.
HR range:
Adult :15 ～ 300bpm
Infants / children: 15 ～ 350 bpm
HR Accuracy: ± 1 bpm
Precision calibration signal: 1mv(peak, ± 5% accuracy)
ST Detection: measurement range (-2.0mV～+2.0mV)
Baseline recovery time: < 3 seconds after defibrillation
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling:40～255 bpm adjustable
Threshold: 20～160 bpm adjustable
RESP Breath:
Breathing frequency range:
Adult : 7～120 brPM
Infants / children:7～150 brPM
Accuracy:± 2brpm
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Alarm: Sound and Light
Alarm range: (numerical preset alarm over)
Ceiling: 10～100 bpm adjustable
Threshold: 0 ～99 bpm adjustable
NIBP measurement:
Technology: Oscillometric
Mode: Manual / automatic / continuous
Measurement units: mmHg / kpa
Protection: Double security protection
Scope: Pressure Cuffs 0-250 mmHg
Overvoltage protection: Double safety protection
Adult Pattern：300 mmHg
Children Pattern：240 mmHg
Newborn Pattern：150 mmHg
Blood pressure measuring range:
Adult
Systolic blood pressure: 40～270 mmHg
Diastolic blood pressure: 10～215 mmHg
Pressure on the average: 20～235 mmHg
Children
Systolic blood pressure: 40～200 mmHg
Diastolic blood pressure: 10～150 mmHg
Pressure on the average: 20～165 mmHg
Newborn
Systolic blood pressure: 40～135 mmHg
Diastolic blood pressure: 10～100 mmHg
Pressure on the average: 20～110 mmHg
The accuracy of blood pressure:The maximum average error amp 5mmHg; maximum standard deviation 8mmHg
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
Systolic blood pressure maximum: 40～250 mmHg adjustable
Threshold: 10～220 mmHg adjustable
Diastolic blood pressure ceiling: 20 ～250 mmHg adjustable
Minimum standards: 10 ～220 mmHg adjustable
Spo2 measurement
Range: 70～00%:±2DIGIT 0～69%：Not defined
Resolution: 1%
Pulse frequency: 20～300 times / min
Alarm: Sound and Light
Preset range: report (Alarm over preset numerical)
Ceiling: 20% ～ 100% adjustable
Threshold: 10% ～ 99% adjustable
TEMP measurement:
Technology: thermostat temperature probe
Measuring range: 0°C～45°C
Temperature resolution: 0.1%
Accuracy: ± 1°C
Response Time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1°C～45 ° C adjustable
Threshold: 20°C～44.9°C Adjustable
Power:
AC power supply: AC 220V, 50Hz. 1A maximum current
Temperature: 5～40°C
Storage temperature: -20°C～40°C
Working humidity: ≤85% relative humidity, non-condensing
Humidity storage: ≤95% relative humidity, non-condensing
Altitude: 86～4106kpa feet (working condition)
Whole Power: not more than 70VA
